Range Extender Kit

Description

The iParcelBox controller includes a patented Long Range wifi mode, which allows you to  achieve up to 500m line-of-sight range between an iParcelBox and Range Extender Base Station.

The iParcelBox Range Extender Kit contains the following components:

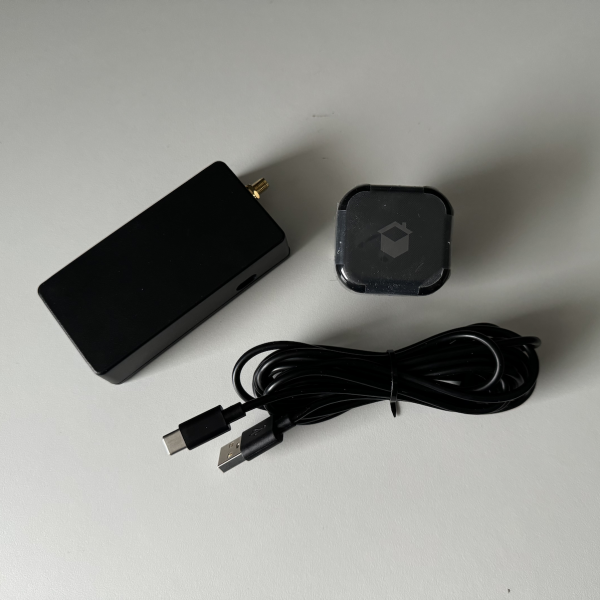

• Range Extender Base Station (located indoors)
• 5v USB power supply for the Range Extender Base Station.

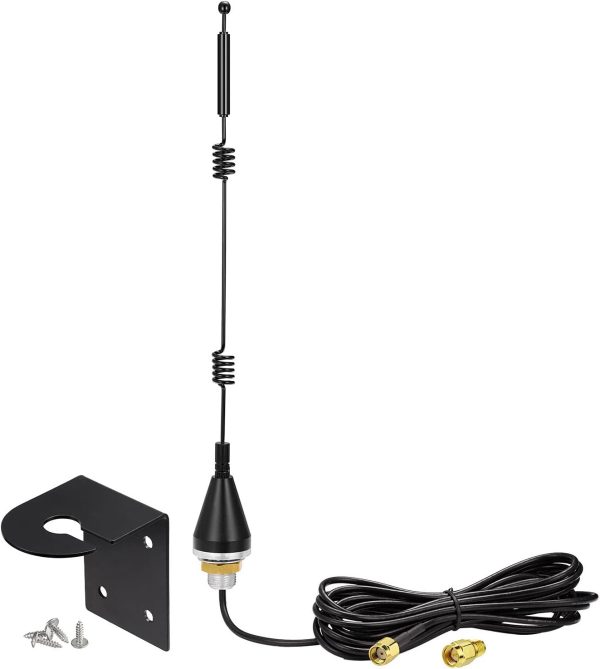

• Wall-mounted (omni-directional) antenna, with 3 metre cable. You mount this on the outside of your property, route the cable indoors and connect it to the Range Extender Base Station.

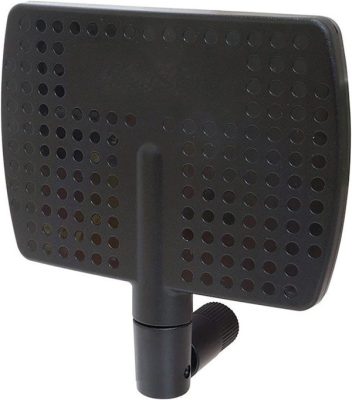

• Hi-Gain directional antenna. You replace the existing iParcelBox antenna with this new antenna, and point it directly towards the Omni-directional antenna fixed to your property.

iParcelBox to be purchased separately.

Please note:  The Range Extender Kit is compatible with all current versions of iParcelBox, but will not extend your WiFi network for any other devices (as it uses a proprietary, patented technology that only works between the iParcelBox and Range Extender Base Station).

How it works:

1. The Omni-directional wall mounted antenna is fixed to the outside of your property, within range of your WiFi network, and also in line-of-sight of your iParcelBox.  It’s connected to the Range Extender Base Station which is located inside your property (or in a waterproof enclosure), powered using the provided power supply.
2. During the setup process, you connect the Range Extender Base Station to your existing WiFi network (2.4 gHz). An LED on the range extender shows the status of the connection.
3. Connect the Hi-Gain directional antenna to your iParcelBox and point it directly facing the wall-mounted Antenna attached to your property.
4. The iParcelBox will now connect to your Range Extender Base Station, which will route the signal onwards to your WiFi network.

Technical specification:

• Connectivity: WiFi 2.4 GHz
• Power: DC 5v (power supply included).
• Maximum Range: 500m. (direct line of sight required)
• Mobile OS requirements: iOS 11+, Android 7.0+

In the box:

• Range Extender Base Station
• Power Supply
• 1x Omni-diretional Antenna with wall mounting kit and 3m cable (to connect to Base Station)
• 1x Directional antenna (to connect to iParcelBox)
